Products

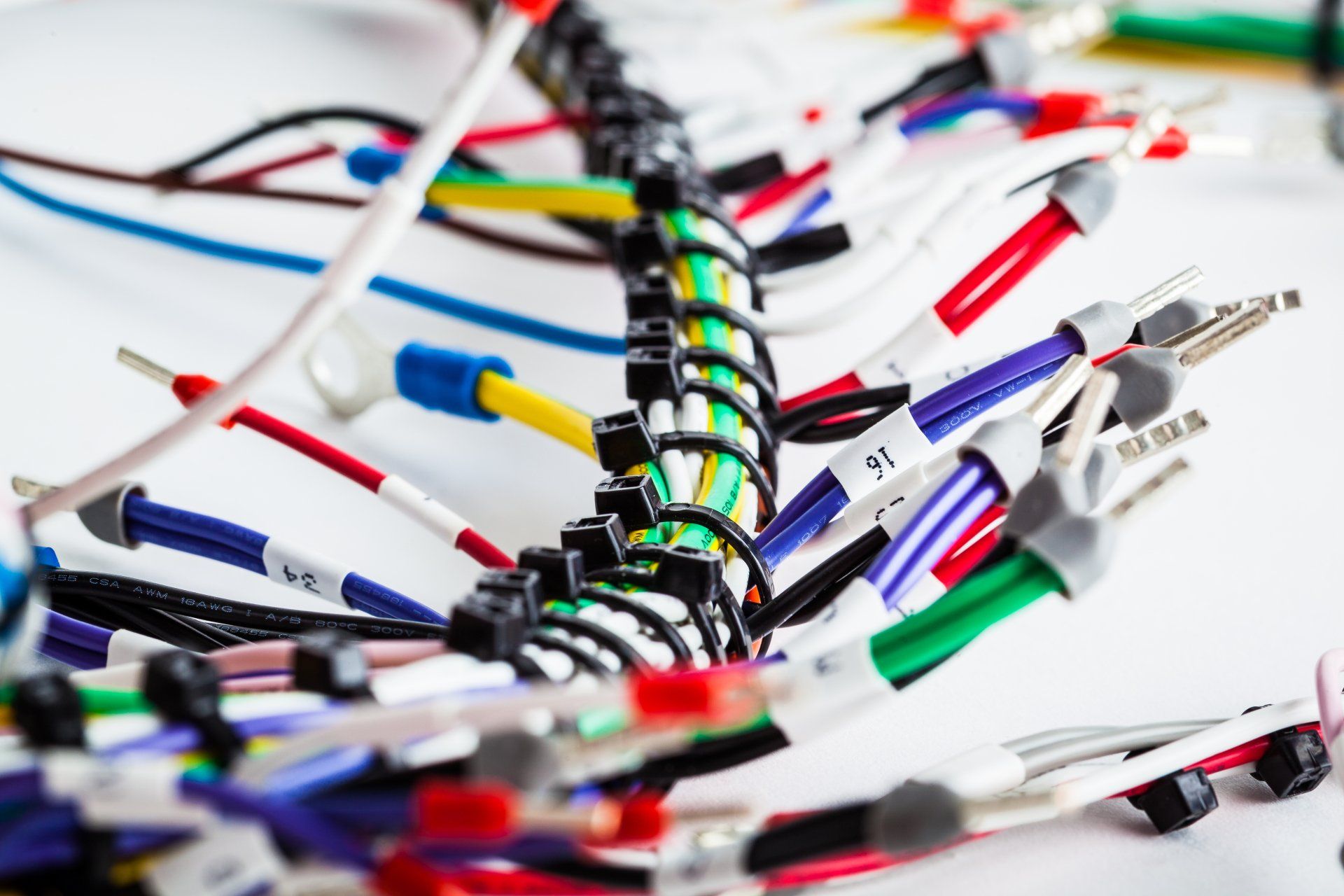

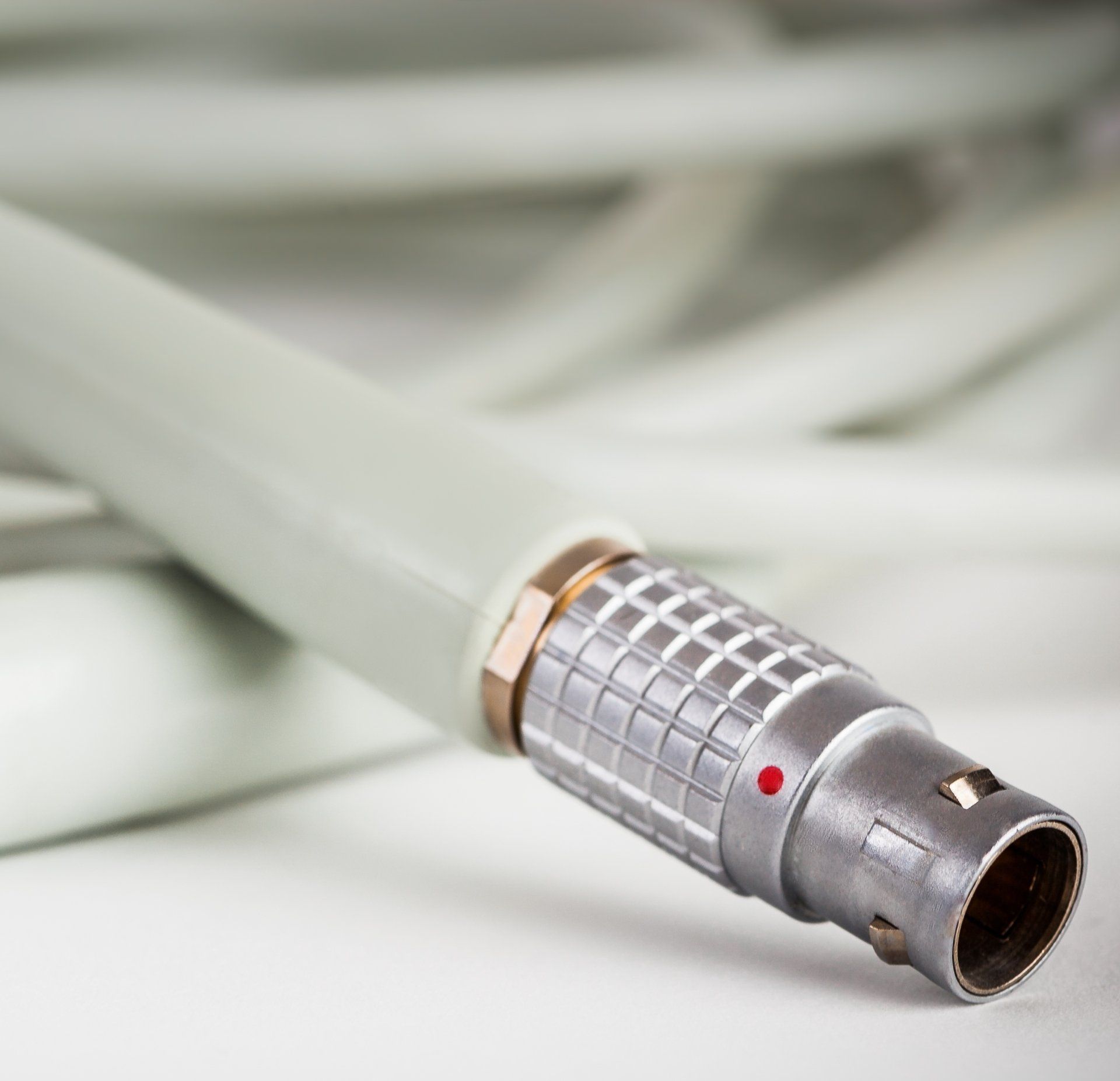

Cable Assembly, Loom and Box Build
The type and number of cable assemblies we supply is vast and constantly growing! From a simple cut and strip wire to a 50 metre length multi-point loom with over 100 connectors, we can supply all of our customers' requirements. Key capabilities include:
Crimping from 40AWG+
All wire sizes and types capable of full assembly
All Manufacturers Supported
Tyco, JST, Molex, Hirose, JAE, Deutsch, Souriau, Lemo, Fischer and FCI and others!
Overmoulding / Double Moulds
High & Low temperature materials: PVC, PU, Silicone etc
Stake Welding / Laser Welding
For robust plastic assembly
Cable Marking
Laser, Heat Shrink - fully customised identification
Waterproof and IP65 Solutions
For preventing water, dust, or salt spray ingress
100% Fully Tested as Standard
100% electrical test for continuity, shorts, crossed wires
Custom Testing Available
Flash, Hi-Pot, Impedance and customised testing
High Mix / Low Volume
Fully supported with our local logistics
Product Highlights

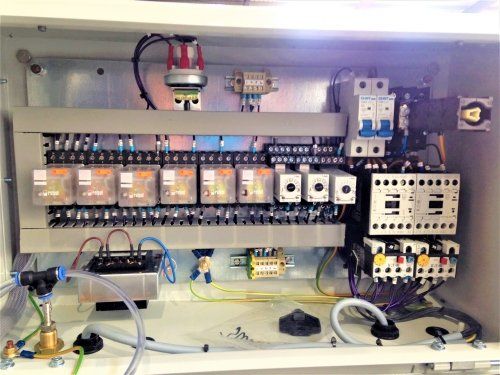

Box Build
Fully built and finished parts - all wiring, components and metalwork supplied by us (see photo for example)
Ribbon / IDC Cables
Flat and round cable types supported
Coaxial / Semi Rigid Cables
All connector types supported
Power Cords
Customised and Standard Assemblies
Network and Data Cables
Including the latest technologies such as USB 3.0, Cat 7
Computer and Video Cables
LVDS, SCSI, Displayport among many others
Audio Video (AV) Cables
Including custom electronic assemblies
Medical Cable Assemblies
Quality controlled with ISO13485 and UL approvals

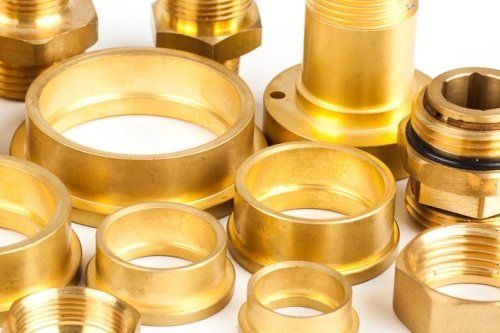

Metal Precision Components and Assemblies
Cableplus Europe are a leading supplier of metal precision components and customised assemblies. Investment in the latest machinery means we can deliver the highest quality parts to you at the right cost. Key capabilities include:
5 Axis CNC
Machining to the highest tolerances
Casting
Die Casting, Vacuum, Sand, Investment Cast
Turning
Chamfering, parting, threading, boring, drilling, knurling
Forging
Reduces waste and therefore unit cost

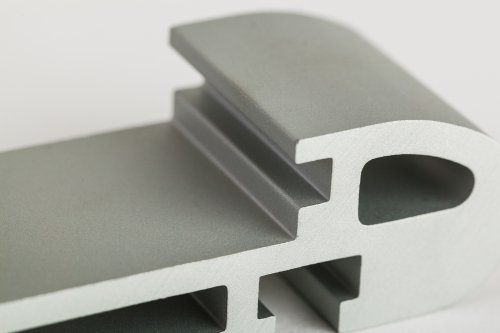

Extrusion
Finished and machined to your requirements
Stamping
Progressive, Transfer, Stage, Deep Drawing
EDM Wire Cutting
Ideal for prototyping or low volumes
Laser Cutting
No tooling costs also highly accurate

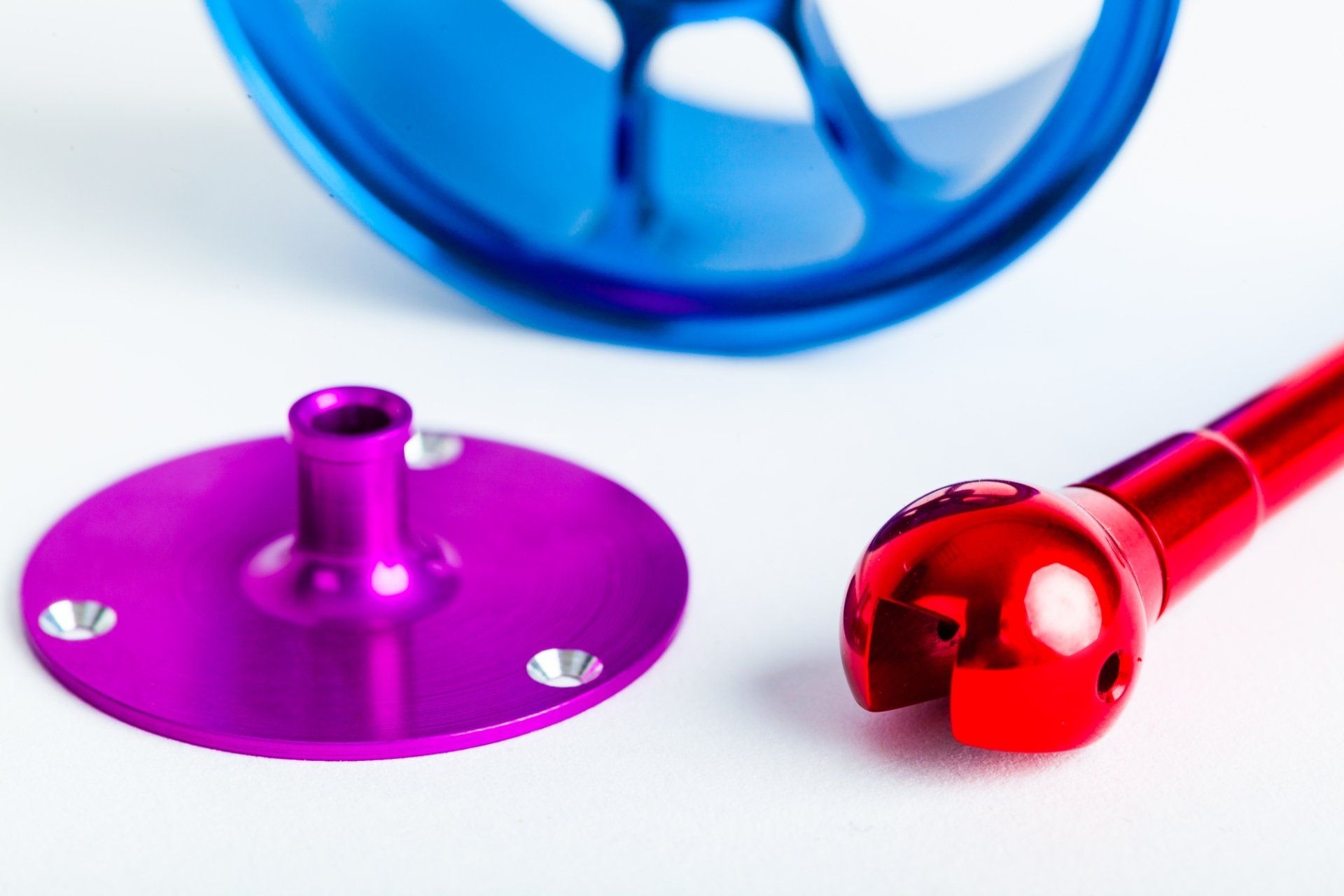

Cosmetic Finishing
We have great experience in finishing metal parts and assemblies to the highest cosmetic standard. This is well suited to demanding end markets such as medical (life critical, high temp), industrial (UV, salt spray, humidity, high temp), automotive and the renewable sector. We offer the following finishes:
Pre-Treatment
Sand blast, brush, polish, heat treatment, grind
Cleaning
Medical microbial cleaning
Anodising
Tolerance to several microns, clear or coloured
Plating
Electroless Nickel Plating, Chrome, Silver
Passivation
Zinc, Stainless Steel
Powder Coating / E-Coating
Die Casting, Vacuum, Sand, Investment Cast
Plastic Injection Moulding, Parts and Assemblies
We have extensive knowledge of manufacturing plastic parts and assemblies to high tolerances. This know-how of process flow and product history enables us to deliver the best quality solution for your individual project requirements. Our injection moulding machinery ranges from 40 to 1,300 tonnes so we can offer products from the smallest micro-connector up to a large medical base housing.
Injection Mould Tooling
Design and feasibility
Finishing
Powder Coating, Spraying, Printing, Parylene
Vacuum Forming
Design and feasibility
Extrusion
PVC (flexible, rigid, nitrile), TPR, HIPS, PP, LDPE, MDPE, HDPE
Turning
Using our cutting edge technology CNC machinery
Blow Moulding
Hollow parts in HDPE, LDPE, PP, TPE, Nylon, ABS, K resin

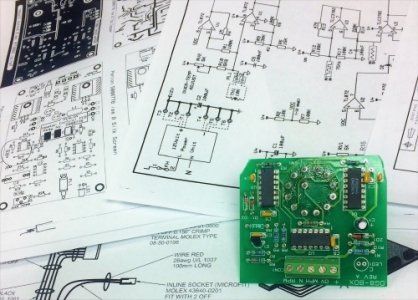

PCB and PCBA
We are a world class source for PCB and PCBA with an established track record of high quality supply. As with all our other product ranges, we can assist you with design and prototype stages prior to manufacture. Our comprehensive supply chain allows us to integrate a PCB with our other technologies such as moulding and cable assembly. This creates a simple, one stop resource for your requirements.
Surface Mount Technology
SMT
Radial and Axial Assembly
Including Pin Through Hole
Manual Assembly
With 100% testing
Potting and Overmoulding
For IP rated encapsulation
Coating
Paralene, Conformal, Custom
Testing Methods
BGA, X-Ray, In-Circuit Testing, Functional Test
Custom Components with OEM Design
The range of parts that are identified in this product category is extremely diverse and constantly growing due to strong customer demand. Our expertise in world class supplier identification and quality control has allowed us to add to our product portfolio of custom components.

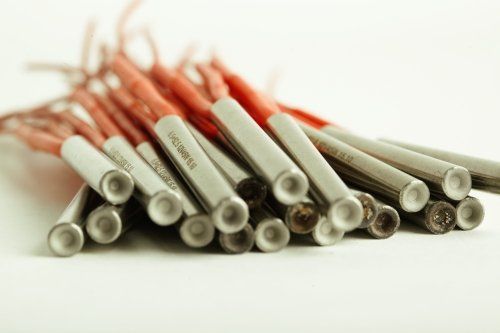

Cartridge Heaters
- Heat transfer component
- Temperatures up to 800°C
- Simple push fit into pre-drilled holes
- Custom termination and lengths

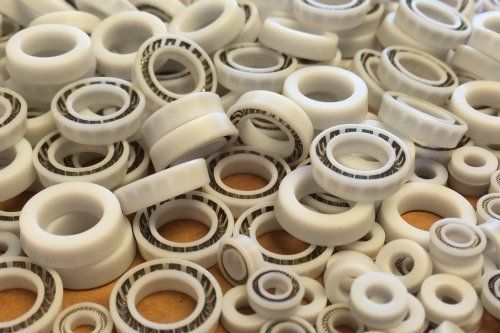

PTFE, FEP and Rubber Seals
- PTFE seals withstand high temperatures (–70 to +250°C) and aggressive end applications
- High tolerances for critical sealing dimensions
- Also in: NBR, Neoprene, EPDM, Silicone, Viton, PU
- Custom shapes and OEM design available

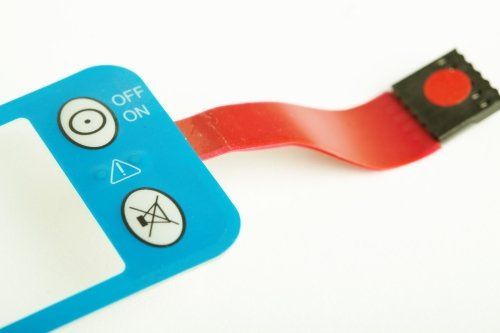

Membrane Switches
- Available as: Tactile, Non Tactile, Shielding, Back Lighting, Embedded LED and Resistor
- Activation strengths from 8mm to 20mm
- IP Rated and UV Resistance available
- Custom shapes and any connectivity option

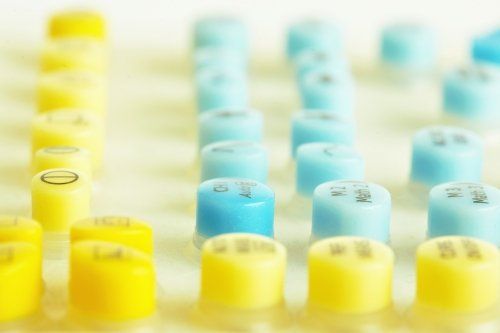

Silicone Keypad
- Typical activation force: 100-300g and travel between 0.8-2mm
- High temperature, chemical resistant to FDA, flame retardant options
- Translucent and Luminescent options available
- Custom shapes and bespoke design offered

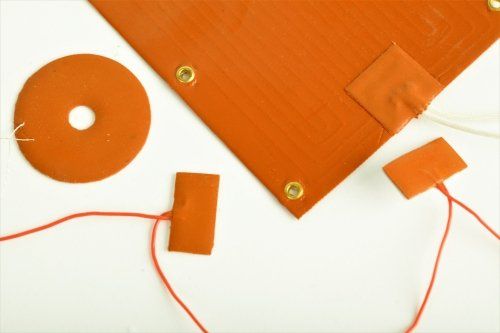

Silicone Heater Pads
- Wire-wound or etched foil heating elements
- Operating temperatures range from -60°C to 250°C
- Good chemical resistance
- Custom shapes and sizes, up to 10 metres²

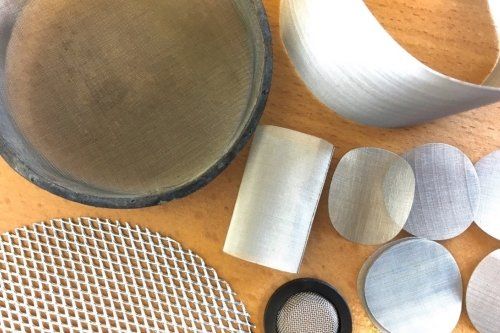

Wire Mesh and Filter Washer
- Wire mesh available from 0.025mm hole size upwards
- Filters suitable for industrial, automotive, electronics and domestic applications
- Over moulded mesh parts in PVC, Rubber and other materials
- Custom forms and assemblies offered
Standard Components
Driven by customer demand, Cableplus Europe have expanded their product offering to include standard components. Usually these are available as standard items (ex-stock or on short lead times) or they can be customised according to your requirements.
Knobs
Star, Lobe, Taper, Wing, Thumbscrew, Button and many others. Supplied in plastic and metal
Handles
Bridge, Pull, Ledge, Clamping, Lever. Supplied in plastic and metal
Locks and Latches
Standard and customised
Switches
Micro, Rocker, Push Button, Toggle, Key, Rotary, Tact, Illuminated and many others
Potentiometer / Trimmers
And accessories
Fuse Holders
Inline, Waterproof, Panel, Board Mount, Twist Lock

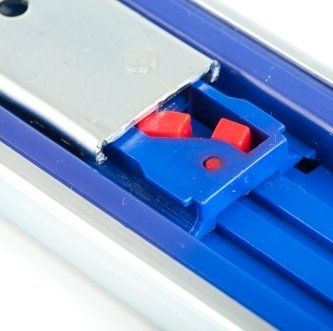

Drawer Runners / Drawer Slides
Ball Bearing Drawer, Adjustable Concealed, Soft Closing, Self Locking, Touch to Open, Full Extension
Castors
Light and Heavy Duty, Industrial and Medical
Packaging - Cartons and Boxes
Single, Dual or Triple Wall. Custom printing and dimensions to your specification

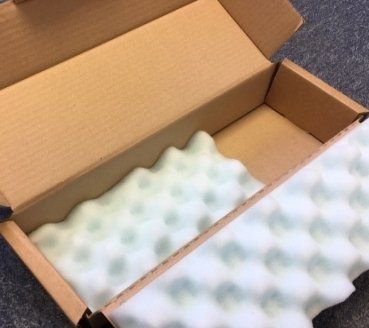

Packaging - Foam, Blister Pack
Protective Foam as insert or packaging, in PU, Stratocell, Plastazote. Bulk blister pack and printed inserts, or high quality gift box suitable for retail environments
